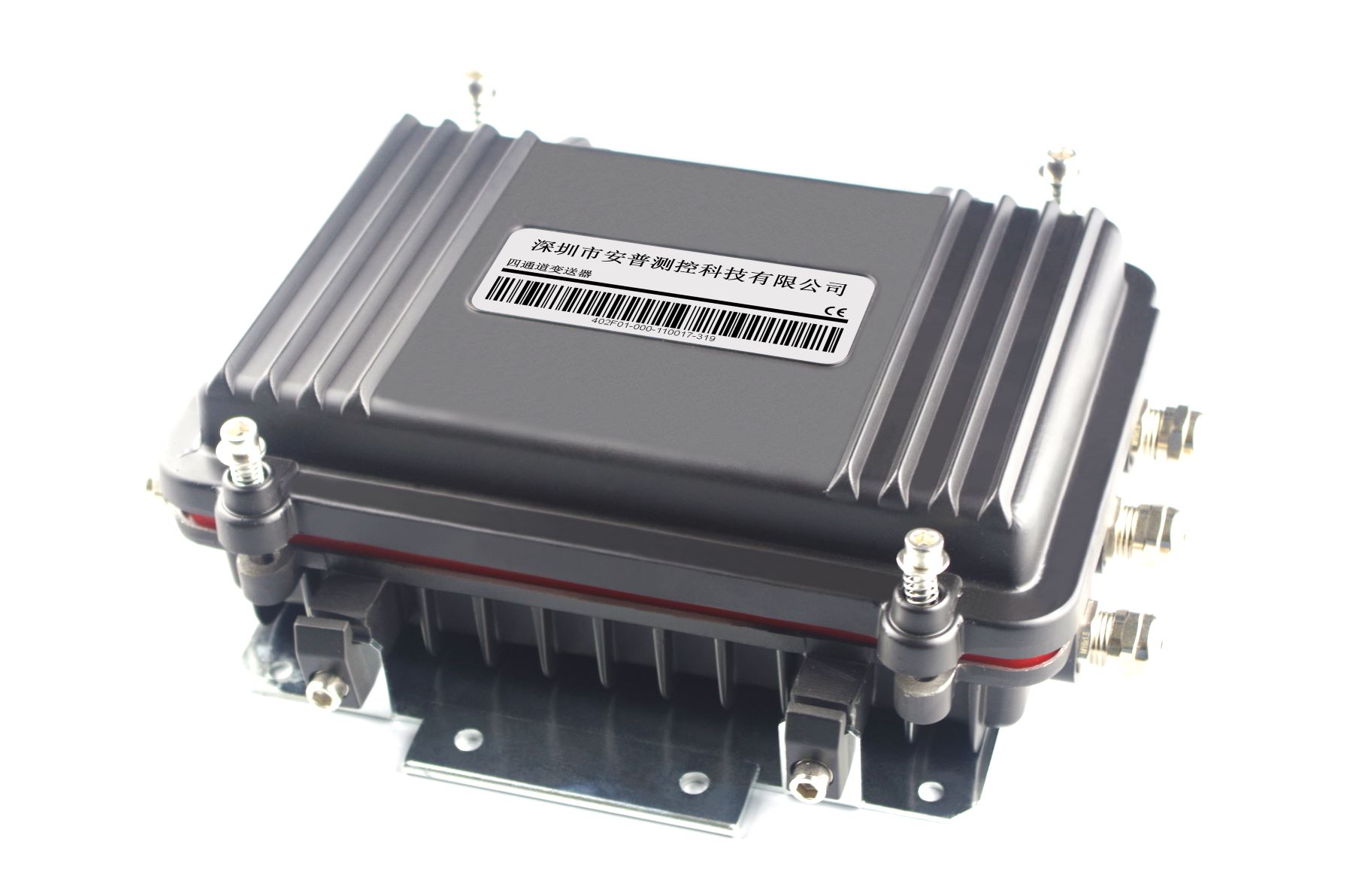

The weighing transmitter can draw and save the 2-dimensional curve of force value and displacement. The hold function can divide the measurement interval, and switch the hold function (sampling, peak value, valley value, inflection point value, change point and final displacement) arbitrarily to judge the product. Each interval can specify upper limit value, lower limit value and hold type.

Bridge power supply in the range of 0.25 volts DC 60 mA (switchable to 2.5 volts DC)

The input range is 0.4mv\/v3.1mv\/v, which can be set as input (when the bridge power supply is DC5V)

Output range DC10V load resistance higher than 5kΩ (set by function)

The output rate can be switched between 4\/s, 20\/s, 50\/s and 100\/s (synchronized with the display rate)

The output resolution is about 1\/12,000

Zero adjustment range 2.4mv\/v

Nonlinear display 0.01 percent FOB

Output 0.05 percent FOB

Input disturbance below 0.6μVP-p

(Digital filter? Stabilization filter default setting)

Input filter 2 Hz, 10 Hz, 100 Hz, 2 kHz

weighing transmitterSample rate 100 times\/second

Check about 0.3 mV\/V

Load display - 9999999999 red 7-segment light-emitting 2-pole tube The display range of the character height is 17 mm

Display rate is 4 times\/sec (switchable between 20 times\/sec, 50 times\/sec and 100 times\/sec)

External Control Function Zero, Peak\/Trace\/Analog\/Z, Hold, Reset\/Analog\/Z Off, Select 1, Select 2

The weighing transmitter is a digital torque tester designed for testing fully automatic electric screwdrivers.

Strengthen the design of the test base and disperse the center of gravity of the test force.

The operation is simple, the use is fast, and the user can easily detect the torque of the screwdriver.

For the charging design, fast charging only takes 3 hours to meet the customer's fast charging requirements.
