Description of functional characteristics of batching scale instrument

●In the weighing process of the batching scale instrument, general parameters can be set, and at the same time, the variety number, actual weight and various accumulated quantities of the previous scale can be checked.

●Dosing scale meterIt has control functions such as feeding, 2 or 3 feeding, bag clamping, bagging and batch setting control.

●The standby output port can freely choose various output functions;

●Reliable parameters can be stored after debugging, and factory parameters can be restored;

●The display has excellent zero stability and gain stability due to the use of a recognized preamplifier (made in the USA) as the input amplifier of the load cell.

●High-speed analog-to-digital conversion processing of 300 times per second can also respond quickly to instantaneous weight changes, thereby greatly improving the performance of the metering display.

●In all input ranges, the display accuracy of 1\/10,000 can be guaranteed.

●According to different purposes, the batching scale instrument can adjust the strength of the filter at will to control the influence caused by the vibration of the mechanical system, thereby improving and ensuring high-speed and accurate measurement.

●Using digital range to simplify the operation process of initial calibration.

● Input method using purposeful priority keys, even if the company's display is used for the first time, input operations such as setting values ​​can be easily performed.

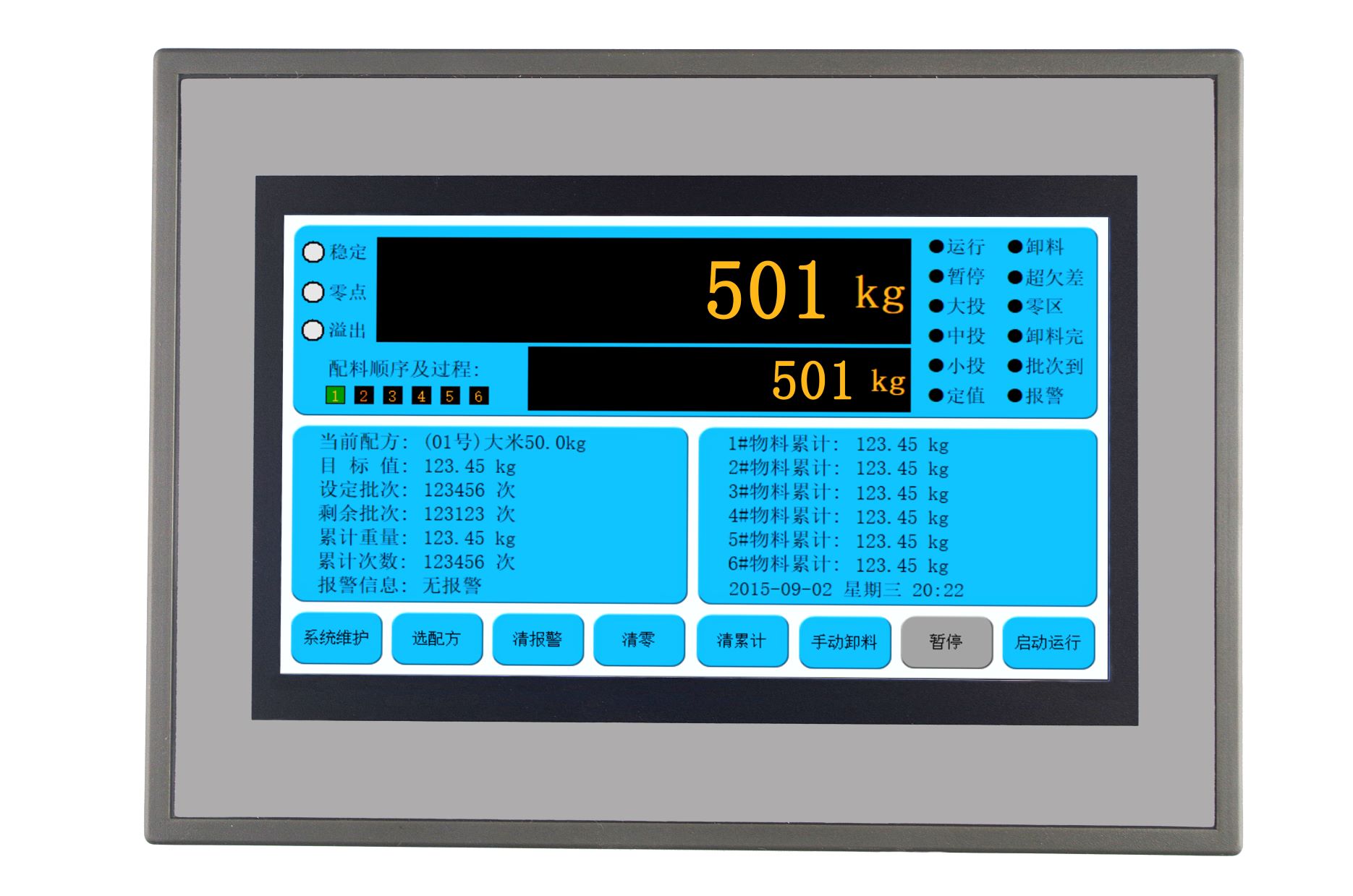

●The meter of the batching scale adopts variable frequency fluorescent display, and various indication values, set values ​​and status display values ​​are clear and easy to see.

●Various set values, correction values, accumulated values ​​and other data. Stored in FRAM (non-volatile memory), the data will not be lost even if the power is suddenly turned off.

● Important data of measuring instruments, such as calibration values, are stored in programmable read-only memory.

●The display has a self-checking function to monitor the operation of the central processing unit, the analog-to-digital conversion, the input and output ports and the display chip to prevent misoperation and improve the reliability of the system.

●39 switch input and output (13in\/26 optional output) and one analog output, RS232 or RS485 optional output for communication;

●The communication adopts the international common modular bus protocol, which can be easily connected with touch screen, programmable controller, upper computer and large screen;

●Compatible and comparable with Japanese single pulse (F701) instrument;

●Ingredient scale meter with advanced business functions for date and package control
