The checkweigher instrument checks the weight of the finished product according to the high-speed dynamic weight reading method. According to the set target weight value, the system automatically detects whether the weight of the product is qualified, whether the number of products in the box is missing, whether the manual or accessories are missing, or whether the packaging is excessive, etc. .If unqualified products are found, the system will automatically issue an alarm or automatically grade according to weight, and can also cooperate with subsequent assembly lines to automatically reject unqualified products.

At present, the production lines of my country's manufacturing, transportation and logistics industries use manual sorting in raw materials and product packaging, resulting in waste of resources and complex processes, especially in food production lines, whether metal inflow or outflow needs to be tested twice. Now With a new product - online sorting scale, specially designed to handle all types of products and packaging. It has a variety of packaging, bags, cans, trays and cartons and is connected with other auxiliary equipment to improve inspection Efficiency and effective management of production.

Checkweigher MeterWith a variety of measurement ranges and precision ranges, it is widely used in pharmaceutical, daily chemical, food, chemical, battery and other industries. All types of production lines have been integrated into coastal areas for weighing and sorting all types of raw materials and packaging products (including multiple small packaged products).

The purpose of checkweighers is to improve product quality, optimize processes, control costs, eliminate waste and increase profits.

Checkweigher instrument checkweighing range: 100 grams 6000 grams

The fastest inspection speed: 180 boxes\/min

Maximum checkweighing accuracy: 0.3g

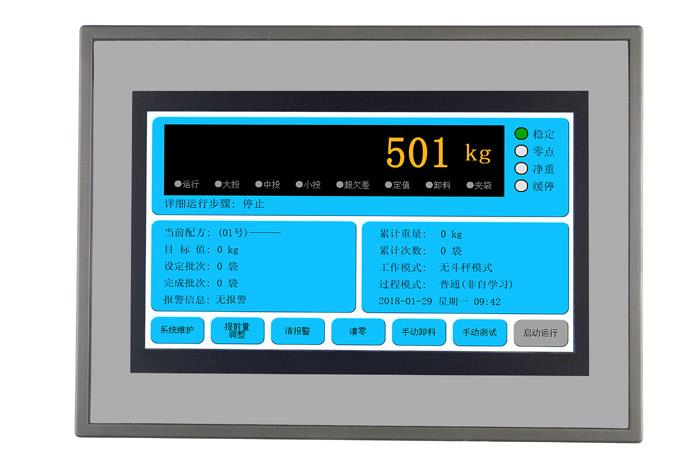

Display mode: 8-inch color touch screen

Number of products stored: 200

Conveyor belt size: 400mm (length), 300mm (width)

Conveyor belt height from ground: 850950mm adjustable (customized)

Overall Dimensions: 1200mm (L), 850mm (W), 1400mm (H)

Rejection mechanism: Rejection cylinder (can be customized blowing type\/push rod type\/sliding type)

Delivery direction: facing the operation interface from left to right (can be customized)

The innovative modular construction of the checkweigher instrument is easy to clean, suitable for the most demanding production environments and minimizes downtime. The checkweigher instrument uses the latest weighing and control technology based on its accuracy, reliability and ease of integration It provides accurate results from start to final package weighing and can be easily integrated with metal detectors and x-ray inspection equipment.
