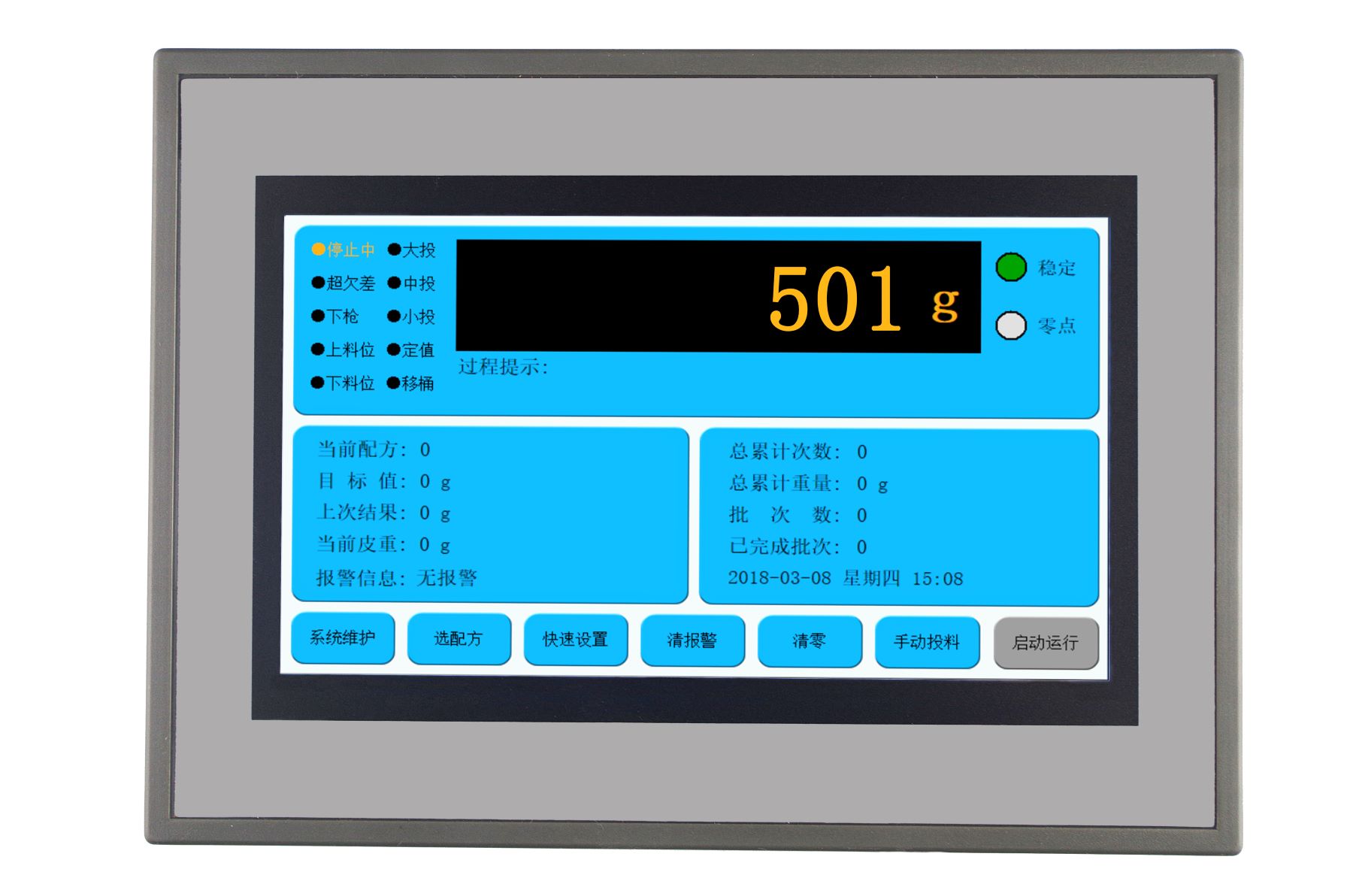

The filling scale instrument is a special intelligent instrument for static and dynamic measurement. It integrates the measurement and control functions, and is used in conjunction with the constant speed, speed regulation, weight loss and other scales to realize the weighing and batching of various materials. The instrument adopts high performance , High anti-interference, industrial-specific single-chip microcomputer, with RS-485 communication interface, can be easily connected to the DCS system. The intelligent PID output can perform closed-loop control of the actuators such as frequency converters.

Filling scale instrument features:

♦ Small size, powerful function, stainless steel anti-corrosion panel, all metal shielding shell.

♦ High precision, high resolution?-△ type A\/D conversion, maximum number of A\/D pulses: 1,000,000 .

♦ Optional update rate: 25 times\/sec, 50 times\/sec, 100 times\/sec, 200 times\/sec.

♦ Dividing range: 1000-50000.

♦ Graduation value range: 0.001-50kg.

♦ High precision a\/d conversion, readability up to 1\/30000;

♦ It is convenient to call the internal code and display, and replace the weight observation and analysis tolerance;

♦ Zero tracking range, zero setting (boot\/manual) range can be set separately;

♦ Digital filter strength\/ad conversion speed adjustable;

♦ Equipped with rs-232\/422 communication port, optional baud rate and communication mode;

♦ Equipped with large screen communication port, 20ma (constant current source mode) connection mode;

♦ 12 LED status indicators, 13 LED digital tubes display real-time information such as instantaneous weight, target value or actual feeding.

♦ With coarse feeding, medium feeding, fine feeding, 3-speed feeding control

♦ With jog feeding compensation function.

♦ Advance value can be input and can be corrected automatically

♦ It has the functions of bag clamping, bag shooting, material unloading, material level detection, etc.

♦ Can preset a variety of prohibited weight comparison time, to prevent weight misjudgment caused by mechanical vibration

♦ Optional analog weighing signal output interface, the output mode is 4-20ma, plug and play;

♦ 8-channel optical isolation switch input control, 14-channel switch (relay optional) output control;

♦ Parameters such as advance, tolerance, residual, and node delay can be set;

♦ Functions such as automatic tare selection, out-of-tolerance intervention, short-feed point compensation, and beating at the end of discharge can be selected;

♦ Can carry out automatic cycle quantitative\/fixed times control;

♦ The number of automatic packages can be preset, and the number of automatic zero calibration packages can be preset

♦ Applicable to working mode with weighing bucket, working mode without weighing bucket and working mode of platform scale

♦ Provide power-off protection function during batching process.

♦ With 10 recipe editing and saving functions.

♦ With serial port printing function

Filling scale instrumentIt is mainly designed and developed based on the actual experience of more than a thousand belt scales and control parts used in various parts of the country. It removes the complicated operation of imported instruments, and adopts the form of man-machine dialogue to display directly in Chinese (Chinese characters are 16X16 dot matrix). All kinds of related information, operation and calibration are particularly convenient. It has functions such as automatic zero point calibration, automatic interval calibration, fault self-diagnosis, high flow, low flow alarm, multiple input\/output, etc., and has a variety of communication protocols.

The filling scale instrument adopts a variety of communication functions, these communication functions allow the instrument to be connected with computers and printers, and the input\/output functions can be used to drive relays, motor starters, switches, etc.
