Working principle and characteristics of packaging scale instrument

With the progress of the times, there are more and more kinds of mechanical equipment. When we use measurement and control equipment, we will use a variety of different mechanical equipment. They play a very important and important role in our work. For example, the packaging scale instrument is a very common machine. How much do you know about the packaging scale instrument? The reason why the packaging scale instrument is so popular is inseparable from its better performance and advantages, such as speed Fast, stable, easy to operate, etc., let us explain to you what the working principle of the packaging scale meter is!

Packing scale instrument functions and features:

1. The packaging scale instrument has high precision, fast speed, long life, good stability, manual bagging, automatic measurement

2. It is not limited by the packaging container, and is suitable for occasions where the variety of materials and packaging specifications change frequently.

3,Packaging scale meterIt is designed for vibrating feeding and weighing by electronic scale, which overcomes the shortcomings of measurement error caused by the change of material specific gravity.

4. The digital display is simple and intuitive, the packaging specifications are continuously adjustable, the working state can be changed arbitrarily, and the operation is very simple

5. The packaging scale instrument can be equipped with a dust removal interface or a dust suction device designed by our company at the mouth of the bag for materials that are prone to dust.

Technical parameters of packaging scale instrument:

Measurement method Weighing type (industrial electronic scale)

The power of the packaging scale instrument is 350 watts

Feeding method: 3 vibrators, 2-stage feeding

Packaging scale instrument air pressure no

Weighing range 2-10kg (continuously adjustable)

Packing scale instrument gas consumption no

Packaging specification 2-10kg (resolution 1 gram)

The material of the packaging scale instrument and the part in contact with the material are stainless steel 304

The error of a single bag is less than or equal to ±8 grams

The weight of the packaging scale instrument is 190kg

Packing speed 18-8 bags\/min

Packaging scale instrument volume 89010502230 (mm)

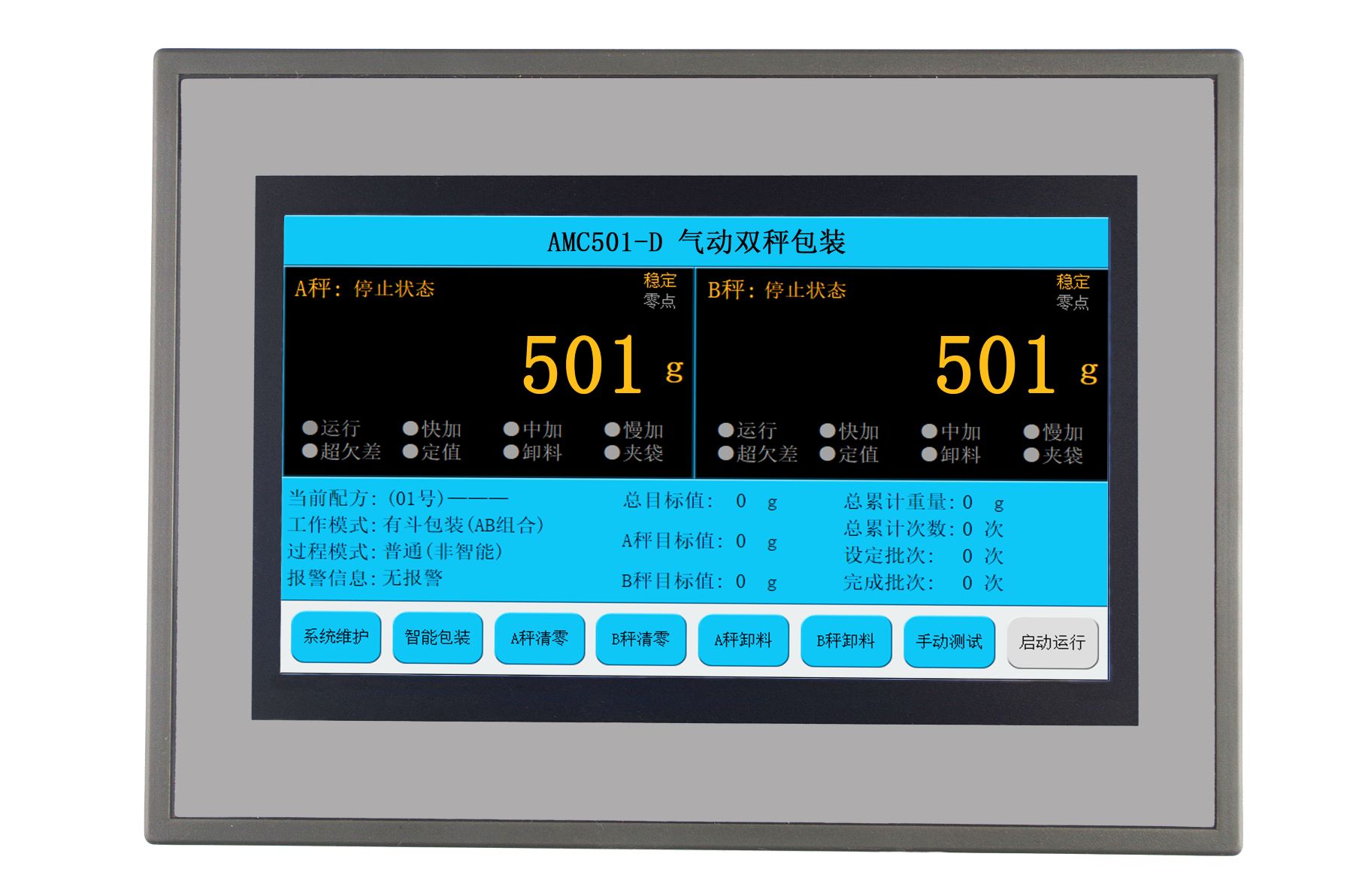

The packaging scale instrument provides a precise bridge source for the sensor, and accepts the output signal of the sensor. After internal acquisition and processing, it calculates and displays the weight value of the material in the weighing hopper. After the controller starts running, the weight value of the material in the weighing hopper is calculated by Compared with the fixed value of each channel, the automatic feeding control of materials 1, 2, 3, and 4 can be realized in sequence, and automatic drop correction can be realized, and then the left (right) unloading permission signal is waited to realize automatic left (right) unloading. After the unloading is completed, the number of tanks is automatically increased by 1, the first material is reloaded, and the second batching cycle is started to realize automatic batching.
