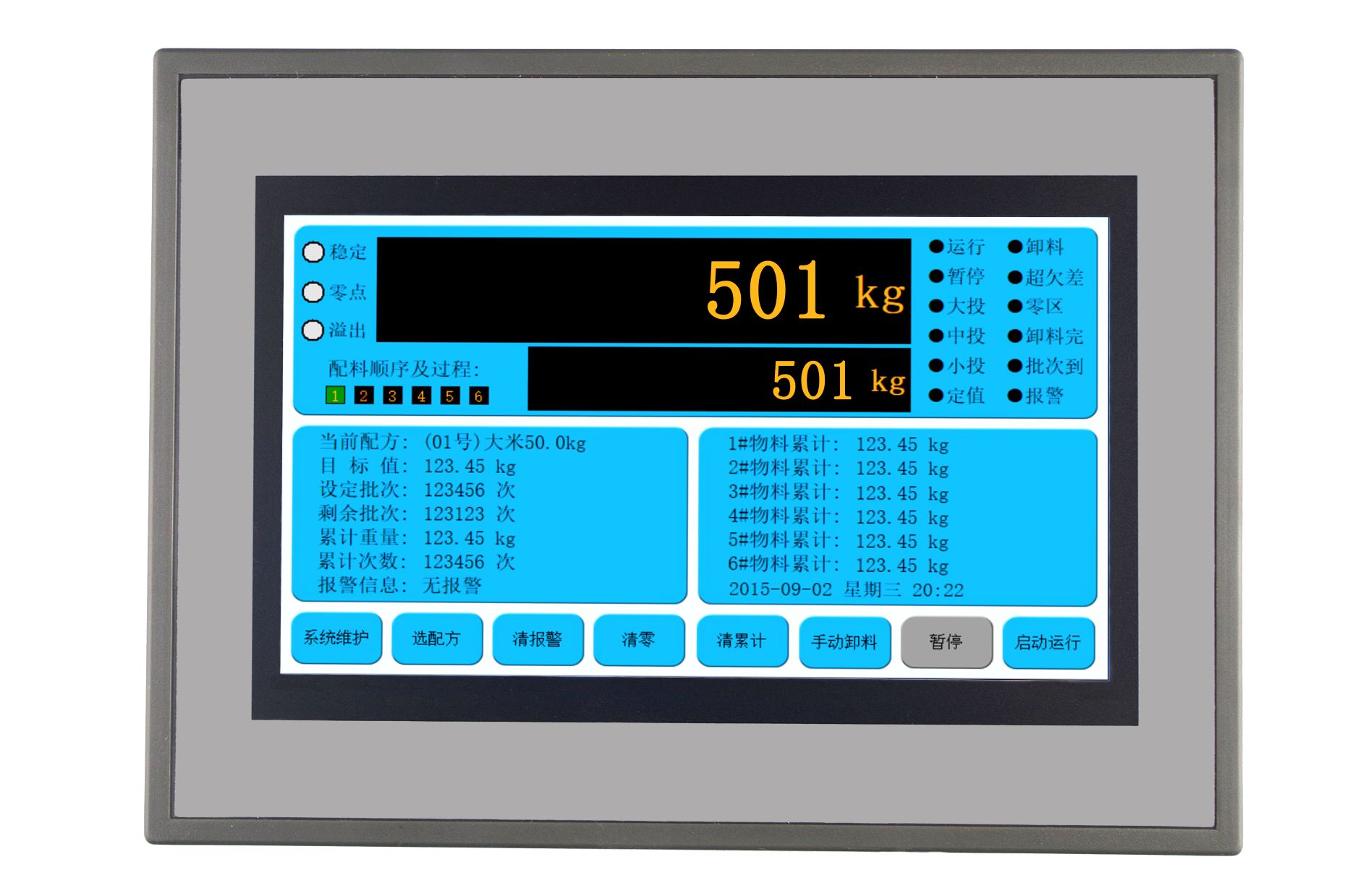

The weightless scale instrument adopts aluminum alloy casing. It has good anti-interference, special waterproof sealing joint, and the cover has waterproof rubber gasket, which is waterproof and dustproof; the assembly and debugging are simple and convenient, and the reliability is high; at the same time, the sensitivity is matched with the adjustment method, and each output It can be balanced and adjusted to prevent the damage to the sensor caused by inductive lightning and surge signals. The weightless scale instrument for batching and packaging converts the sensor signal through the amplifying circuit, and directly outputs standard voltage (0-5VDC) or current (4-20mADC, 0-10mADC) ) signal. The structure can be: internal type, external type, multi-channel transmitter and multi-channel junction box.

The meter is installed close to the hopper, thereby reducing installation costs. A complete 20-terminal terminal strip can connect 4 sensors, so the junction box for separate connection can be omitted.

2 screw-type terminal strips provide supply voltage connection, sensor wiring and analog output. Zero and span adjustment for the analog output is done by 2 sets of DIP switches and 2 trimmer potentiometers.

An adjustable filter is included to stabilize the output. Vibrations caused by agitators or other devices can be minimized.

Ingredient packagingWeightless scale instrumentEach converter is set to customer specifications or factory standards to provide a full test job prior to shipment order. In case of changing requirements, or to verify initial settings, follow the procedure outlined in Part 2 of the manual.

The standard package is a DIN-rail mounted engineering plastic bracket.

The converter can choose a 110-230Vac to 24Vdc power adapter (optional) as the power supply. For additional information, please refer to the optional manual.

The functional parameters of the weighing scale for ingredients and packaging:

A, wide input range, 0.46mV\/V can be matched with most strain bridge sensors

B, strong load capacity can be connected with 4 350Ω sensors

C, using original imported electronic components, high response frequency, good long-term stability

Comprehensive accuracy of ±0.05 percent FS

D, input power reverse polarity protection and output short circuit protection

E, power supply 1630VDC (recommended 24VDC) or 1224VAC

F, suitable for various strain bridge sensors such as pressure, tension, pressure, torque and tension

technical parameter:

Supply voltage: 1630VDC or 1224VAC

Input sensitivity: 0.46mV\/V

Sensor excitation voltage: default 5VDC (or 12VDC optional)

Comprehensive accuracy: less than or equal to ±0.05 percent FS
