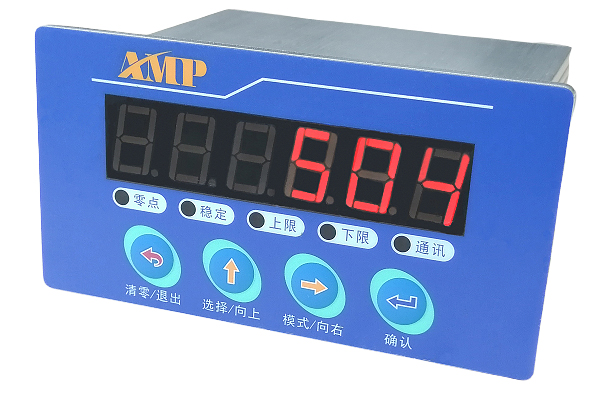

The force measuring instrument is a high-speed sampling intelligent instrument developed for force measuring applications. It has the characteristics of multi-function, high precision, high speed, multi-interface, etc. It is suitable for push-pull force test, plug-in force test and destructive test of various products. , high-speed data acquisition, etc., and can be combined with various testing machines and fixtures to form small testing machines for different purposes. This force measuring instrument has a variety of serial communication interface protocols (Print, Modbus ASCII, Modbus RTU), RS232 communication interface , RS485 communication interface, 4-way switch input and 5-way switch output interface, 4-20mA, 0-10V analog interface. The instrument adopts cabinet-mounted aluminum alloy shell, which can be easily embedded in the control cabinet.

Specifications for the use of force measuring instruments:

1. Instrument power supply: 100V-240V AC.

2. Working environment: 0°C-50°C, humidity below 90 percent RH, no frost.

3. 1-4 channels of 0-20mV signal input.

4. Sampling speed: 10 times\/second, basic error ±0.03 percent FS, display range -19999-99999.

5. Matching resistance strain type load cell, suitable for measurement and control. 5 key operation mode.

6. The output excitation voltage is 10V, and the current is about 200mA.

7. Total value, net value, peak hold, one-key reset and other functions.

8. High-precision transmission output (4-20mA, 0-5V, 0-10V).

9.4-way relay output.

10. The force measuring instrument supports RS232 or RS485 communication.

11. Support TG ONE data acquisition management software.

12. Dimensions: 16080125, opening size 15276.

13. Small size, beautiful appearance, convenient and applicable

14.DynamometerApplicable to all resistance strain bridge load cells Ø Full-board digital calibration, the process is simple, convenient and intuitive

15. Digital filter function

16. Automatic zero tracking function

17.5 OC open circuit output control

18.4 multi-function access signals

19. Bidirectional isolated serial port function,

20. With RS485, RS232 to facilitate communication with computer, PLC or other equipment

21. The force measuring instrument has various communication protocols of MODBUS_RTU, MODBUS_ASCII and printing formats

22. Optional interface: 0-20mA, 4-20mA or 1-5V, 0-10V custom analog output
