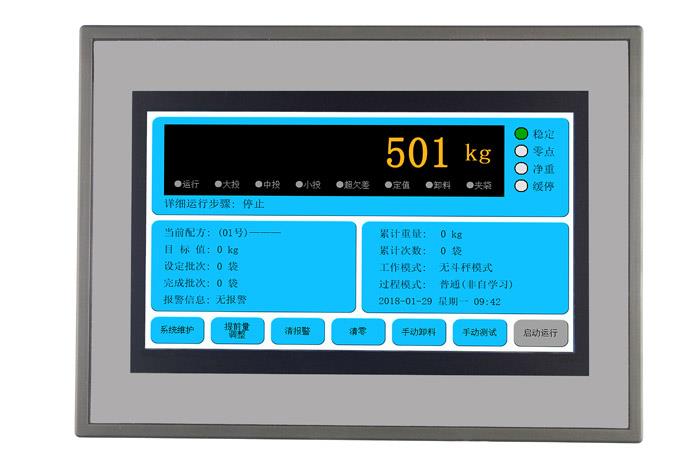

The checkweigher instrument is professionally used for high-precision and high-speed material sorting and weighing control. It is the core controller of the sorting scale.

1. The overshoot detection and correction function controlled by parameters can be used, and common parameters can be set during the weighing process, and the variety number, the actual weight of the previous scale and various accumulations can be viewed at the same time;

2, Automatic zero tracking function, standard control function of 3 weight sorting areas;

3. Built-in time, date function, weight classification and statistical fault alarm information;

4,Convenient batch control, suitable for long-term continuous production, power supply: 220V AC powered meter: 220V±10 percent, power consumption less than 7VA; 24V DC powered meter: 24V±10 percent, power consumption less than 5VA;

5. The automatic control function of material feeding in the storage bin can store the reliable parameters after debugging and restore the factory parameters;

6. It has a numeric keyboard, which can directly input numbers, 6 channels of digital input and output (13 in\/13 out) and one channel of analog output, and the communication can choose RS232 or RS485 output;

7. Multiple groups of password protection functions can prevent unauthorized operations from illegal operations

8. The communication adopts the international conventional MODBUS protocol, which can be easily connected with the touch screen, PLC, host computer and large screen;

The checkweigher instrument cooperates with various analog output sensors and transmitters to complete the measurement, transformation, display, transmission, recording and control of physical quantities such as pressure, temperature, flow, liquid level, force and displacement. YQ-XST series The instrument adopts the single-chip embedded combination design, the hardware expandability is strong, the software platform is flexible, can expand the switch input, timing, program sequence control, etc., not limited to standard functions. It can be combined according to actual needs to achieve the best performance.

Checkweigher MeterIt is specially designed for product quality inspection. There are qualified weight display, actual weight and qualified weight deviation display. And it can display the oversized prompt icons of qualified, overweight, underweight, abnormal weight, and 4 states. Real-time voice broadcasts whether the product weight is qualified or not. , omnidirectional prompt. It has quick response, high reliability, small size, convenient and intuitive use. It reduces the work intensity and improves the production efficiency!
