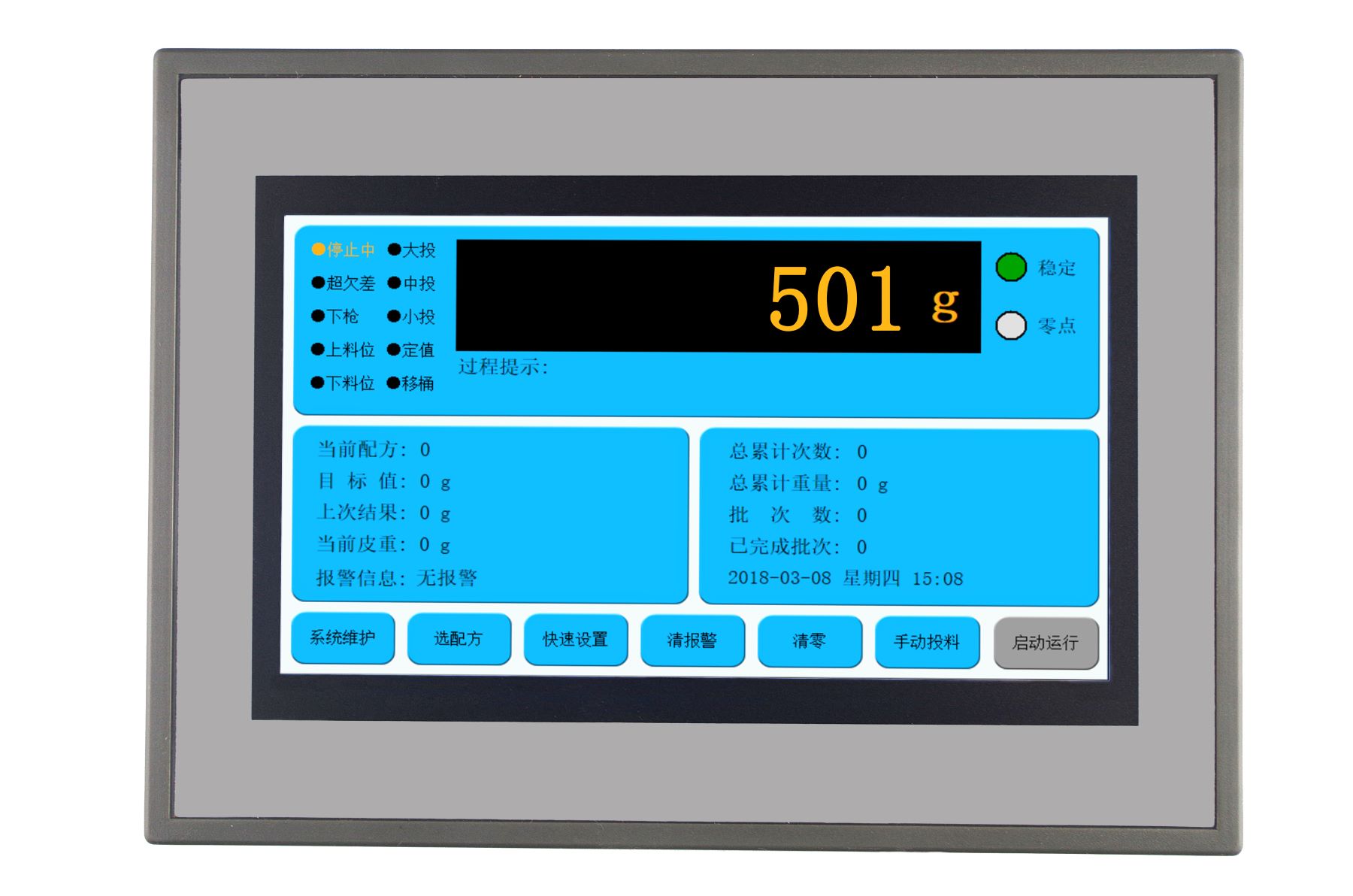

Features of high-speed filling scale instrument:

1, metal casing, strong anti-interference ability;

2, High precision A\/D conversion, readability up to 1\/30000;

3. It is convenient to call the internal code and display, and replace the weight observation and analysis tolerance;

4. The zero tracking range and the zero setting (boot\/manual) range can be set separately;

5, Digital filter strength\/AD conversion speed is adjustable;

6, equipped with RS-232\/422 communication port, optional baud rate, optional communication mode;

7. Equipped with a large-screen communication port, 20mA (constant current source mode) connection method;

8. Equipped with a standard parallel printing interface, which can be connected to a 9-pin or 24-pin wide-line printer;

9, can be connected to TpuP-16 micro-printer;

10,Filling scale instrumentOptional analog weighing signal output interface, the output mode is 4-20mA, plug and play;

11, 6-way optical isolation switch input control, 7-way switch (output control;

12. Parameters such as advance, tolerance, residual, and node delay can be set

13. Functions such as out-of-tolerance intervention and under-material compensation can be selected

14. The filling scale instrument can perform automatic cycle quantitative\/fixed times control

15. Automatic fuzzy intelligent correction of control lead parameters

16, can form the control mode of the addition\/subtraction scale

High-speed filling scale instrument operation process:

1. Turn on the main power and start the instrument to work.

2. The operator moves the filling barrel on the mobile table, aligns the barrel mouth with the standard device, presses the start button switch by hand, and the filling head automatically descends to start filling.

3. The filling scale instrument controller sends a filling signal, the explosion-proof filling head valve opens, the material flows into the filling barrel, and the fast feeding process begins.

4. When the filling amount reaches the large advance amount, the instrument controller of the filling scale sends a slow feeding signal, closes the fast feeding valve of the automatic liquid filling machine, and opens the slow feeding valve. At this time, the material flows into the filling at a small flow rate. Bucket.

5. When the filling amount reaches the small advance amount, the instrument controller of the filling scale sends a stop signal, the valve of the filling head is closed, and the filling head is automatically raised to the top.

6. After confirming that the filling weight is within the control accuracy range, the instrument controller of the filling scale exits the filling program and prepares for the next filling. The worker removes the filled barrel through the raceway, and the filling process is completed. The installation is over.
