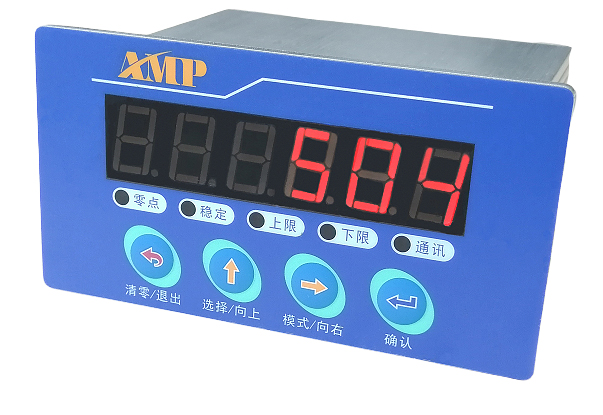

The force measuring instrument is suitable for the push-pull force test, plug-in force test and destructive test of various products, and can be combined with various test machines and fixtures. The force measuring instrument is used to calibrate various pressure transmitters and pressure sensors. It is a pressure calibration standard instrument designed for pressure switch, general and precision pressure gauge. It can also measure current or voltage while measuring pressure. The pressure measured by the intelligent pressure calibrator is the set pressure percentage and the measurement current. Display on the same screen, current and current percentage can be selected through the display menu.

The functional parameters of the force measuring instrument:

1.DynamometerBuilt-in pressure source, pressure hand pump and fine-tuning are installed on the instrument panel, and the on-site calibration is convenient and reliable. The upper and lower limit deviation values ​​can be freely set, and the inner and outer alarms can be selected arbitrarily, and a micro-printer can be selected to print the test results.

2. AC and DC 2 uses, built-in rechargeable lithium battery, long standby time, can be used for a long time in the field without power supply. With peak hold function, peak automatic release and release time can be set.

3. One 24V\/DC output can provide power for the instrument being calibrated.

4. The under-voltage automatic protection function of the micro-power consumption of the force measuring instrument will not damage the battery due to under-voltage even if the operator keeps turning it on for too long.

5. High-performance CPU and temperature sensor are used to automatically compensate the temperature drift of the instrument to ensure a wide range of operating temperatures with accuracy.

6.LCD backlight, pressure, current display, intuitive, clear, compact and reasonable structure, small size, light weight, easy to carry.

7. Metal shell, strong anti-interference, firm and impact-resistant. It can permanently save 100 sets of test reports, and the test report content includes test time, peak value, valley average value, etc.

8. The pressure source parts of the force measuring instrument are finely ground, and the air tightness is good, which meets the IP54 sealing standard. The peak value, real-time value, and the test process curve are displayed on the same screen, which can monitor and trace the whole process of the test.
