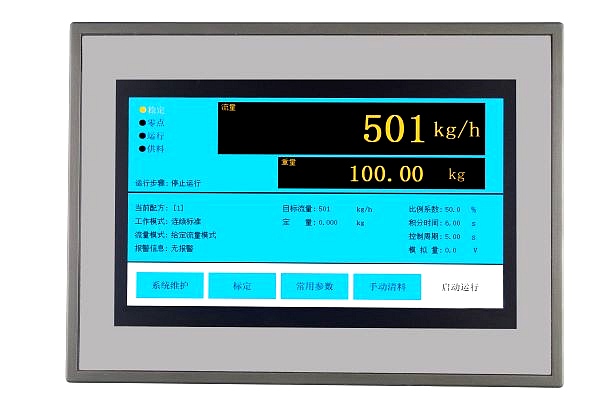

Introduction to the main functions of the weightless scale instrument

The weightless scale instrument has the basic functions of continuous automatic weighing and control, and is suitable for constant speed or speed regulation. A variety of calibration methods. Zero calibration, chain code calibration and physical calibration, as well as analog input and output interface calibration. Correction of calibration coefficient. It can automatically measure the whole circle time, and can set the number of calibration circles sensitively. Physical calibration and chain code calibration can be stopped at any speed, and the accuracy index can be ensured. Automatic tare can be selected when power on (suitable for feeding material). machine system), automatic tare during no-load operation (suitable for weighing scales).

Weightless scale instrumentIntelligent control algorithm. There is no need for very professional setting parameters such as PID, and the instrument can automatically adjust according to the experience value. For the system with particularly large vibration, a large vibration control algorithm is also designed.

It can automatically calculate the initial output. The initial output when the belt scale is started can be set manually, or it can be automatically calculated by the instrument according to the experience value. It is the first of its kind! It has the function of batch operation. It has a real-time clock, automatic shift handling, and can be queried and printed The daily daily report of each class of each class in one month, and the monthly report for 12 months within a year.

Fully digital calibration, and supports quick calibration

·With power-down save function

· With data backup and restore backup functions

4-in 10-out switch, and supports custom and self-test functions

With 16-bit DA analog output, and supports custom functions, current and voltage can be freely switched (GM8806A-PL)

Batching, unloading monitoring and other functions to ensure the normal operation of the system (GM8806A-PL)

·With batch and accumulation functions (GM8806A-PL)

·Perfect feeding function (GM8806A-PL)

Support preset point setting output (GM8806A-C)

RS232\/485 communication interface, support RS, RE and standard Modbus protocol

The measurement method of the weightless scale meter can be started at an optional speed. The linearization processing function is optional. A number of auxiliary functions. Including interface test, factory reset, data backup and data recovery, etc.

Multiple startup methods and multiple flow setting methods, as well as flexible mode switching. Convenient manual operation function. Powerful assistance information. The prompt information of the instrument includes detailed documentation for the current function, prompt information for each step of operation, The current setting status of the instrument (for example, whether the calibration can be stopped, whether the data backup can be stopped, etc.), the symbolic status information displayed in real time (including the current startup method, flow setting method, memory operation status, communication status, etc.), operation errors Prompts, alarm information, and alarm handling information, etc.
